Rack Cabinets
Ventis Co-Location Rack
Ventis Co-Location Rack
Price on application
Made to your specification. The team confirms pricing for each request.Need some assistance? Call +44 (0)20 4513 5452
Our team can help you choose the right product and specification for your project.
Contact us
Delivery & Installation
Delivery & Installation
Products are made to order. Lead times, delivery and installation by Cross-Guard's specialist team are confirmed with your quotation.
Delivery arrangements depend on whether you are buying a stocked product online or ordering a bespoke product on quotation.
Stocked products
Delivery options and charges for products bought through the online checkout are calculated and shown at checkout before payment, based on the delivery address.
Bespoke and quotation products
Caging, containment, grilles and made-to-order racks are manufactured to your specification. Lead times, delivery and installation are confirmed in the quotation for each project.
Site access
Please tell us about delivery route restrictions such as lift sizes, door heights, loading bays and parking when you order or request a quotation, so deliveries and installations can be planned correctly.
Returns
Returns
Stocked products
If a stocked product bought online arrives damaged or faulty, contact the team with your order number and photographs within a reasonable time of delivery and we will arrange a replacement or refund.
Consumers buying online in the UK may have a statutory right to cancel within 14 days of delivery; business purchases are made under the terms agreed in the order confirmation.
Bespoke and quotation products
Products made to your specification cannot normally be returned unless they are faulty or do not match the agreed specification.
How to start a return
Email the team with the order number and the reason for the return. Do not send goods back until a return has been agreed.
Key Measurements
Height
42U or 47U
Width
600 or 800 mm
Depth
1000 or 1200 mm
Load rating
1500 kg static
About Ventis Co-Location Rack
Description

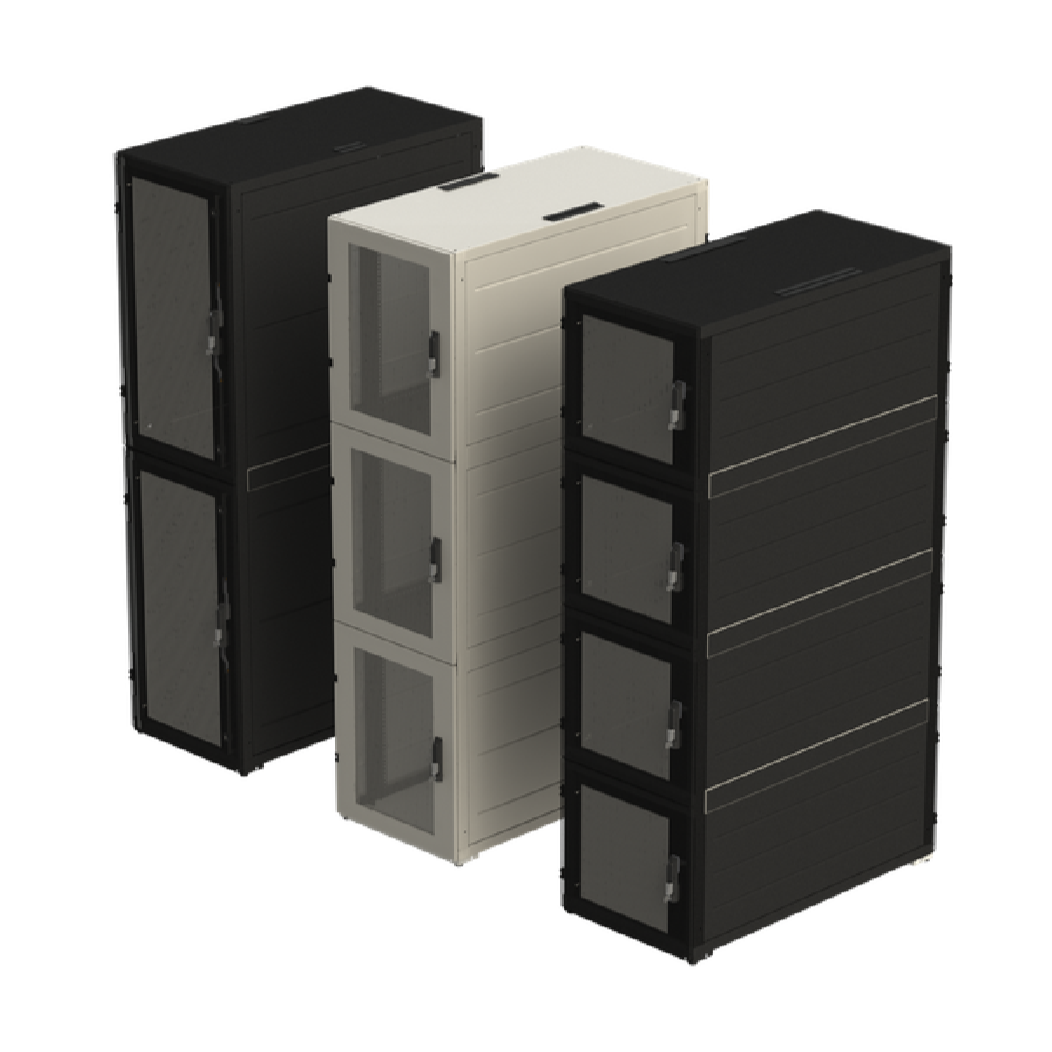

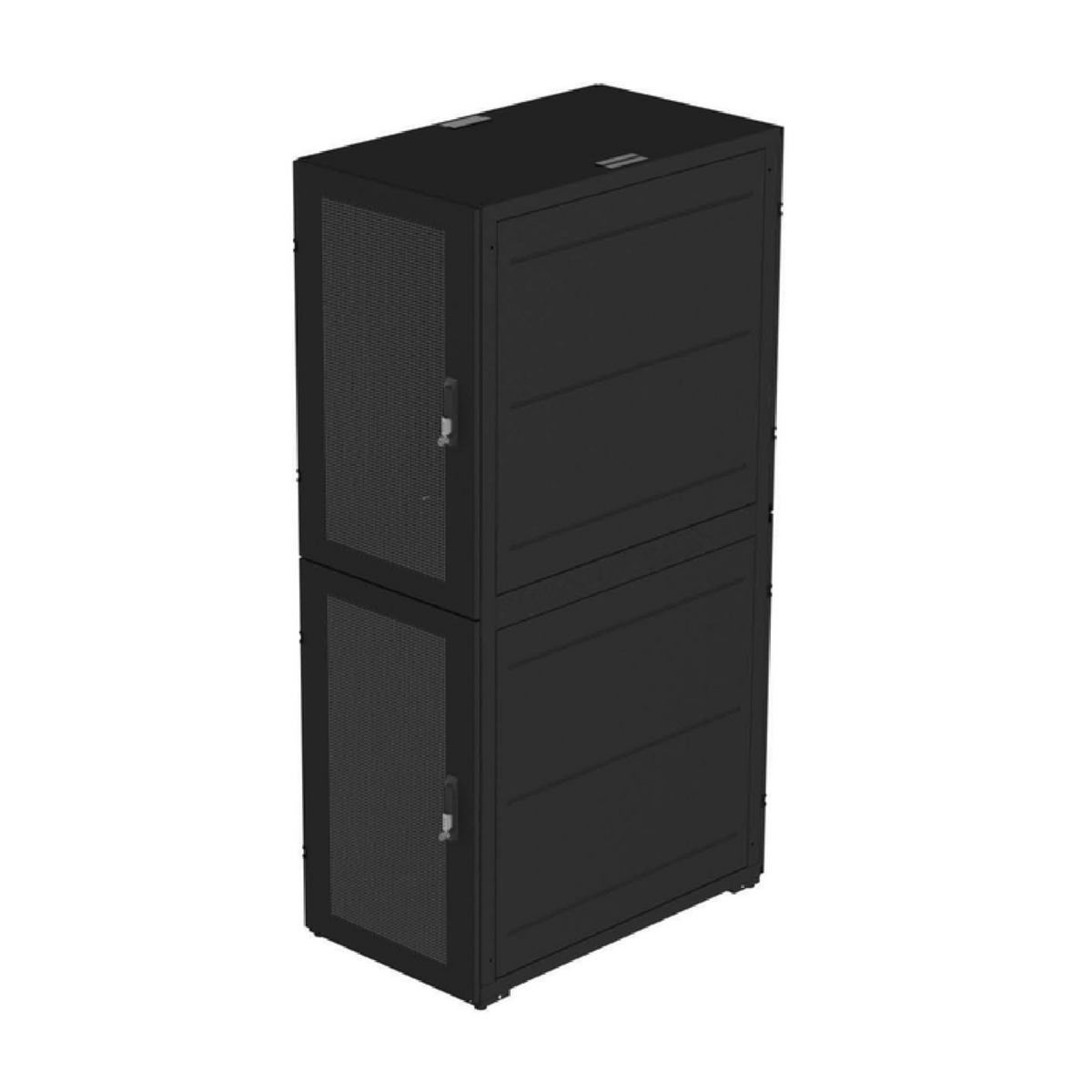

Security in a small footprint. Ventis Co-Location is the ideal platform for multi-tenant architecture, providing an excellent space-saving solution. Two, three or even four conventional rack spaces can be housed within a single floor-standing cabinet footprint.
- Combination locks fitted to each compartment
- Static load capacity 1500 kg (750 kg dynamic)
- Enclosed, secure cable management channels for each bay
- Fully adjustable 19-inch mounting angles
- Lockable lift-off side panels
- Levelling feet fitted as standard
- IP20 rated
- Heights 42U (1972 mm) or 47U (2194 mm) without castors
- Widths 600 or 800 mm; depths 1000 or 1200 mm; vented front and rear doors
- Black (RAL 9005) or white (RAL 9010); alternatives on request
Key information
| Product code | Ventis Co-Location |
|---|---|
| Height | 42U or 47U |
| Width | 600 or 800 mm |
| Depth | 1000 or 1200 mm |
| Load rating | 1500 kg static |
| Height | 42U, 47U |
| Width | 600 mm, 800 mm |
| Depth | 1000 mm, 1200 mm |
| Compartments | Two bays, Three bays, Four bays |
| Finish | Black (RAL 9005), White (RAL 9010), Alternative finish on request |
| Base | Jacking feet (standard), Heavy-duty castors, Plinth |
