Rack Cabinets
Ventis Hyper Rack
Ventis Hyper Rack
Price on application
Made to your specification. The team confirms pricing for each request.Need some assistance? Call +44 (0)20 4513 5452
Our team can help you choose the right product and specification for your project.
Contact us
Delivery & Installation
Delivery & Installation
Products are made to order. Lead times, delivery and installation by Cross-Guard's specialist team are confirmed with your quotation.
Delivery arrangements depend on whether you are buying a stocked product online or ordering a bespoke product on quotation.
Stocked products
Delivery options and charges for products bought through the online checkout are calculated and shown at checkout before payment, based on the delivery address.
Bespoke and quotation products
Caging, containment, grilles and made-to-order racks are manufactured to your specification. Lead times, delivery and installation are confirmed in the quotation for each project.
Site access
Please tell us about delivery route restrictions such as lift sizes, door heights, loading bays and parking when you order or request a quotation, so deliveries and installations can be planned correctly.
Returns
Returns
Stocked products
If a stocked product bought online arrives damaged or faulty, contact the team with your order number and photographs within a reasonable time of delivery and we will arrange a replacement or refund.
Consumers buying online in the UK may have a statutory right to cancel within 14 days of delivery; business purchases are made under the terms agreed in the order confirmation.
Bespoke and quotation products
Products made to your specification cannot normally be returned unless they are faulty or do not match the agreed specification.
How to start a return
Email the team with the order number and the reason for the return. Do not send goods back until a return has been agreed.
Key Measurements
Height
42U to 52U
Width
600 or 800 mm
Depth
600, 800, 1000 or 1200 mm
Load rating
1500 kg static
About Ventis Hyper Rack
Description

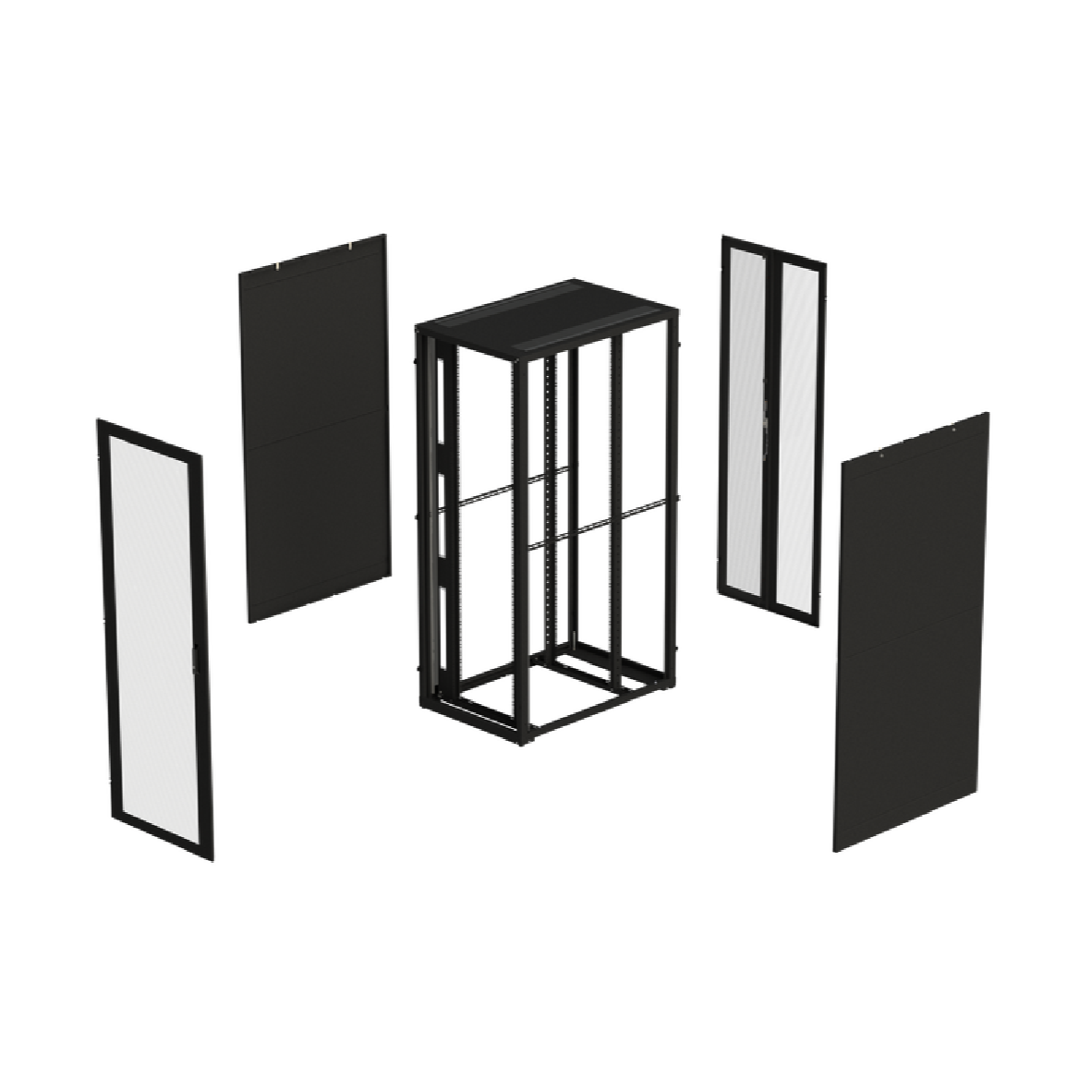

Engineered for hyperscale. A highly adaptable platform for high-density, AI and hyperscale datacentres. The four-post design supports customisation for application, environment and access requirements, works with Cross-Guard aisle containment and suits datacentres, meet-me rooms and server suites.
- 4-post corner design
- Static load rating 1500 kg
- Adjustable 19" mounting angles
- Door options to suit all applications, with 3-point locking

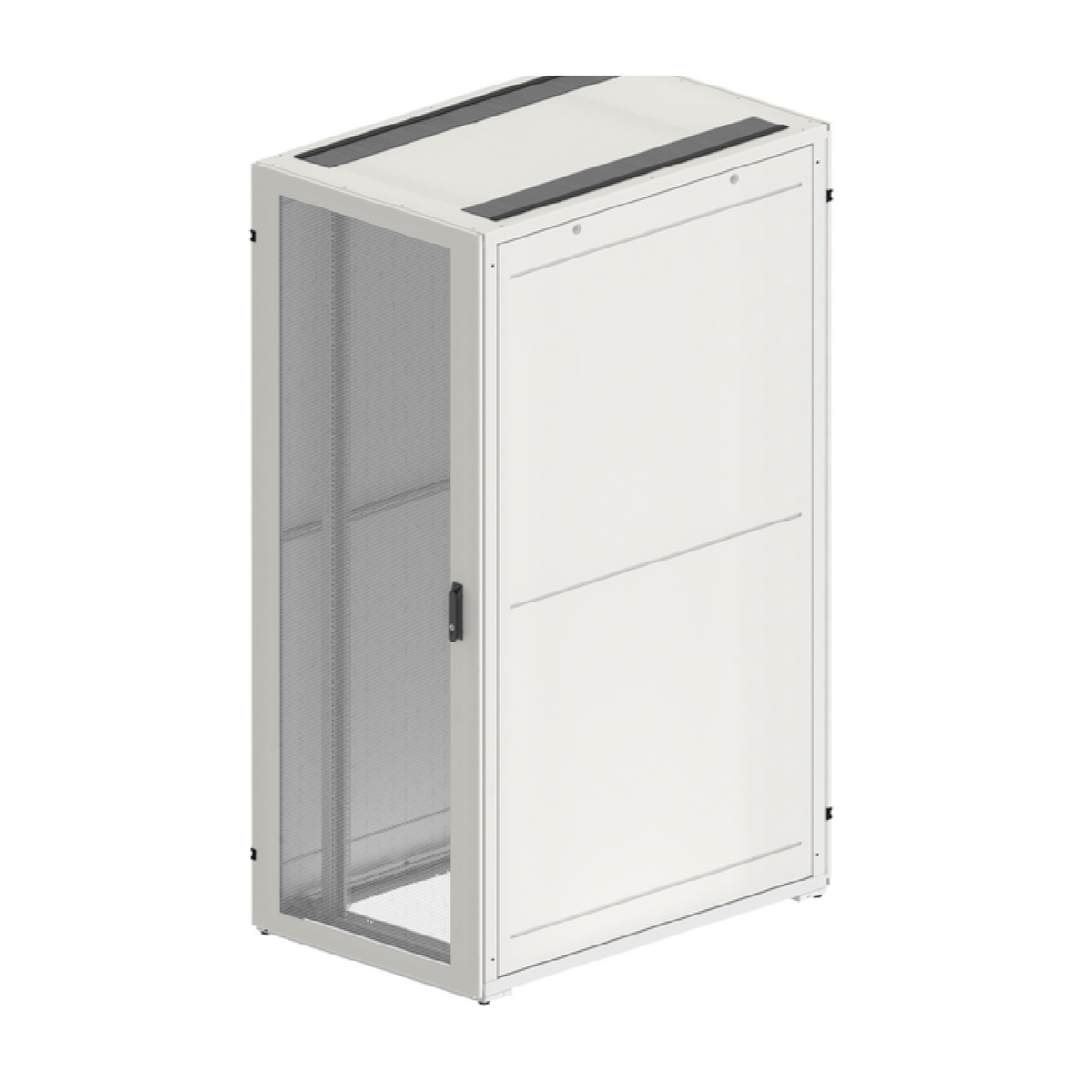

- 88% perforation mesh doors for high-performance cooling
- Zero-U vertical baffles on 800 mm wide models
- Lockable lift-off side panels
- Levelling feet fitted as standard
- IP20 rated
- Available in black, white or custom finishes
Key information
| Product code | Ventis Hyper |
|---|---|
| Height | 42U to 52U |
| Width | 600 or 800 mm |
| Depth | 600, 800, 1000 or 1200 mm |
| Finish | Black (RAL 9005) or white (RAL 9010); alternatives on request |
| Load rating | 1500 kg static |
| Height | 42U, 45U, 47U, 48U, 51U, 52U |
| Width | 600 mm, 800 mm |
| Depth | 600 mm, 800 mm, 1000 mm, 1200 mm |
| Front door | Glazed, Plain steel, Vented, Wardrobe vented, Extended-depth vented |
| Rear door | Glazed, Plain steel, Vented, Wardrobe vented, Extended-depth vented |
| Side panels | Plain steel, Vented, Split |
| Side panels fitted | Both sides, Single side only |
| Finish | Black (RAL 9005), White (RAL 9010), Alternative finish on request |
| Base | Jacking feet (standard), Heavy-duty castors, Plinth |
